TripleCross

TripleCross is a Linux eBPF rootkit that demonstrates the offensive capabilities of the eBPF technology.

TripleCross is inspired by previous implant designs in this area, notably the works of Jeff Dileo at DEFCON 27¹ , Pat Hogan at DEFCON 29² , and Guillaume Fournier and Sylvain Afchain also at DEFCON 29³ . We reuse and extend some of the techniques pioneered by these previous explorations of the offensive capabilities of eBPF technology.

This rootkit was created for my Bachelor's Thesis at UC3M. More details about its design is provided in the thesis document.

Features

1. A library injection module to execute malicious code by writing at a process' virtual memory.
2. An execution hijacking module that modifies data passed to the kernel to execute malicious programs.
3. A local privilege escalation module that allows for running malicious programs with root privileges.
4. A backdoor with C2 capabilities that can monitor the network and execute commands sent from a remote rootkit client. It incorporates multiple activation triggers so that these actions are transmitted stealthy.
5. A rootkit client that allows an attacker to establish 3 different types of shell-like connections to send commands and actions that control the rootkit state remotely.
6. A persistence module that ensures the rootkit remains installed maintaining full privileges even after a reboot event.
7. A stealth module that hides rootkit-related files and directories from the user.

TripleCross overview

The following figure shows the architecture of TripleCross and its modules.

The raw sockets library RawTCP_Lib used for rootkit transmissions is of my authorship and has its own repository.

The following table describes the main source code files and directories to ease its navigation:

MAKEFILE	COMMAND
docs	Original thesis document
src/client	Source code of rootkit client
src/client/lib	RawTCP_Lib shared library
src/common	Constants and configuration for the rootkit. It also includes the implementation of elements common to the eBPF and user space side of the rootkit, such as the ring buffer
src/ebpf	Source code of the eBPF programs used by the rootkit
src/helpers	Includes programs for testing rootkit modules functionality, and the malicious program and library used at the execution hijacking and library injection modules respectively
src/libbpf	Contains the libbpf library, integrated with the rootkit
src/user	Source code of the user land programs used by the rootkits
src/vmlinux	Headers containing the definition of kernel data structures (this is the recommended method when using libbpf)

Disclaimer

This rookit is purely for educational and academic purposes. The software is provided "as is" and the authors are not responsible for any damage or mishaps that may occur during its use.

Do not attempt to use TripleCross to violate the law. Misuse of the provided software and information may result in criminal charges.

Table of Contents

1. Build and Install
2. Library injection module
3. Backdoor and C2
4. Execution hijacking module
5. Rootkit persistence
6. Rootkit stealth

Build and Install

Compilation

The rootkit source code is compiled using two Makefiles.

# Build rootkit
cd src
make all
# Build rootkit client
cd client
make

The following table describes the purpose of each Makefile in detail:

MAKEFILE	COMMAND	DESCRIPTION	RESULTING FILES
src/client/Makefile	make	Compilation of the rootkit client	src/client/injector
src/Makefile	make help	Compilation of programs for testing rootkit functionalities, and the malicious program and library of the execution hijacking and library injection modules respectively	src/helpers/simple_timer, src/helpers/simple_open, src/helpers/simple_execve, src/helpers/lib_injection.so, src/helpers/execve_hijack
src/Makefile	make kit	Compilation of the rootkit using the libbpf library	src/bin/kit
src/Makefile	make tckit	Compilation of the rootkit TC egress program	src/bin/tc.o

Installation

Once the rootkit files are generated under src/bin/, the tc.o and kit programs must be loaded orderly. In the following example the rootkit backdoor will operate in the network interface enp0s3:

// TC egress program
sudo tc qdisc add dev enp0s3 clsact
sudo tc filter add dev enp0s3 egress bpf direct - action obj bin/tc.o sec classifier/egress
// Libbpf-powered rootkit
sudo ./bin/kit -t enp0s3

Attack scenario scripts

There exist two scripts packager.sh and deployer.sh that compile and install the rootkit automatically, just as an attacker would do in a real attack scenario.

• Executing packager.sh will generate all rootkit files under the apps/ directory.

• Executing deployer.sh will install the rootkit and create the persistence files.

These scripts must first be configurated with the following parameters for the proper functioning of the persistence module:

SCRIPT	CONSTANT	DESCRIPTION
src/helpers/deployer.sh	CRON_PERSIST	Cron job to execute after reboot
src/helpers/deployer.sh	SUDO_PERSIST	Sudo entry to grant password-less privileges

Library injection module

The rootkit can hijack the execution of processes that call the sys_timerfd_settime or sys_openat system calls. This is done by overwriting the value of the .GOT section of the process making the call.

The malicious library (src/helpers/injection_lib) will be run and aftwerwards the flow of execution returns to the original function. The library will spawn a simple reverse shell to which the attacker machine can be listening.

You can check this functionality with two test programs src/helpers/simple_timer.c and src/helpers/simple_open.c. Alternatively you may attempt to hijack any system process (tested and working with systemd).

The module configuration is set via the following constants:

FILENAME	CONSTANT	DESCRIPTION
src/common/constants.h	TASK_COMM_NAME_INJECTION_ TARGET_TIMERFD_SETTIME	Name of process to hijack at syscall sys_timerfd_settime
src/common/constants.h	TASK_COMM_NAME_INJECTION_ TARGET_OPEN	Name of process to hijack at syscall sys_openat
src/helpers/injection_lib.c	ATTACKER_IP & ATTACKER_PORT	IP address and port of attacker machine

Receiving a reverse shell from the attacker machine can be done with netcat:

nc -nlvp <ATTACKER_PORT>

Backdoor and C2

The backdoor works out of the box without any configuration needed. The backdoor can be controlled remotely using the rootkit client program:

CLIENT ARGUMENTS	ACTION DESCRIPTION
./injector -c <Victim IP>	Spawns a plaintext pseudo-shell by using the execution hijacking module
./injector -e <Victim IP>	Spawns an encrypted pseudo-shell by commanding the backdoor with a pattern-based trigger
./injector -s <Victim IP>	Spawns an encrypted pseudo-shell by commanding the backdoor with a multi-packet trigger (of both types)
./injector -p <Victim IP>	Spawns a phantom shell by commanding the backdoor with a pattern-based trigger
./injector -a <Victim IP>	Orders the rootkit to activate all eBPF programs
./injector -u <Victim IP>	Orders the rootkit to detach all of its eBPF programs
./injector -S <Victim IP>	(Simple PoC) Showcases how the backdoor can hide a message from the kernel
./injector -h	Displays help

Backdoor triggers

Actions are sent to the backdoor using backdoor triggers, which indicate the backdoor the action to execute depending on the value of the attribute K3:

K3 VALUE	ACTION
0x1F29	Request to start an encrypted pseudo-shell connection
0x4E14	Request to start a phantom shell connection
0x1D25	Request to load and attach all rootkit eBPF programs
0x1D24	Request to detach all rootkit eBPF programs (except the backdoor’s)

Pattern-based trigger

This trigger hides the command and client information so that it can be recognized by the backdoor, but at the same time seems random enough for an external network supervisor. It is based on the trigger used by the NSA rootkit Bvp47.

Multi-packet trigger

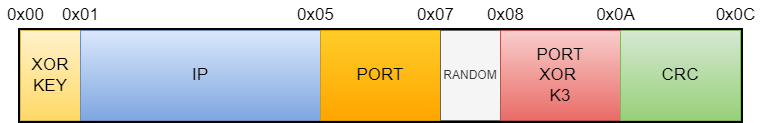

This trigger consists of multiple TCP packets on which the backdoor payload is hidden in the packet headers. This is based on the Hive implant leaked by WikiLeaks. The following payload is used:

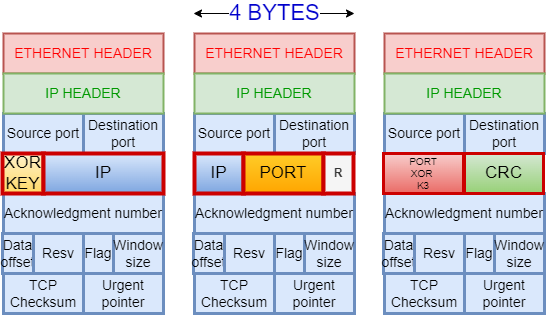

A rolling XOR is then computed over the above payload and it is divided into multiple parts, depending on the mode selected by the rootkit client. TripleCross supports payloads hidden on the TCP sequence number:

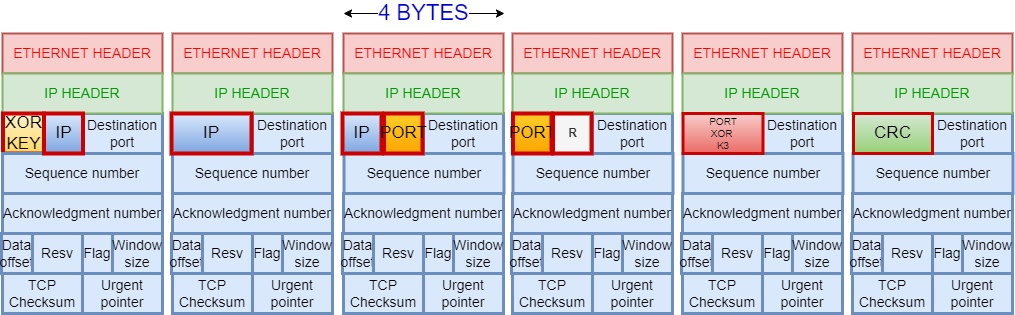

And on the TCP source port:

Backdoor pseudo-shells

The client can establish rootkit pseudo-shells, a special rootkit-to-rootkit client connections which simulate a shell program, enabling the attacker to execute Linux commands remotely and get the results as if it was executing them directly in the infected machine.

Plaintext pseudo-shell

This shell is generated after a successful run of the execution hijacking module, which will execute a malicious file that establishes a connection with the rootkit client as follows:

Encrypted pseudo-shell

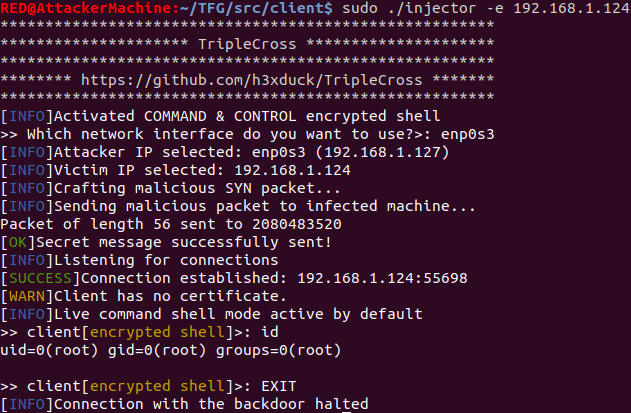

An encrypted pseudo-shell can be requested by the rootkit client at any time. It is managed by the backdoor, and accepts either pattern-based triggers or both types of multi-packet trigger:

Phantom shell

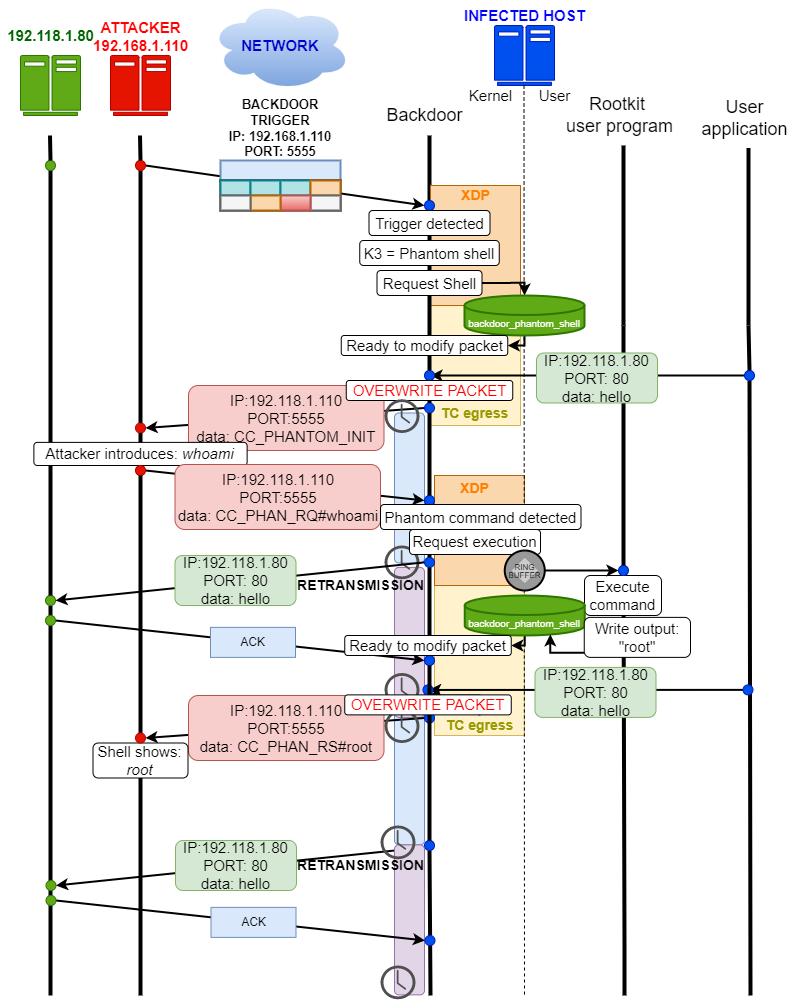

A phantom shell uses a combination of XDP and TC programs to overcome eBPF limitations at the network (it cannot generate new packets) to modify existing traffic so that it fits the C2 functionality using the following protocol (without losing original packets):

Therefore phantom shell is requested by the rootkit client which issues a command to be executed by the backdoor:

After the infected machine sends any TCP packet, the backdoor overwrites it and the client shows the response:

License

The TripleCross rootkit and the rootkit client are licensed under the GPLv3 license. See LICENSE.

The RawTCP_Lib library is licensed under the MIT license.

The original thesis document and included figures are released under Creative Commons BY-NC-ND 4.0.

---

1. J. Dileo. Evil eBPF: Practical Abuses of an In-Kernel Bytecode Runtime. DEFCON 27. slides ↩︎

2. P. Hogan. Warping Reality: Creating and Countering the Next Generation of Linux Rootkits using eBPF. DEFCON 27. presentation ↩︎

3. G. Fournier and S. Afchain. eBPF, I thought we were friends! DEFCON 29. slides ↩︎
